Rotary device for CO2 Glass Laser Tube
Product Display
Product parameter
Main Feature
The machine must be with up and down table for different thickness material;
Stepper motor: High precision of leadshine motor;
Blade workable or honeycomb table: According to your materials, blade table suitable for hard materials like: acrylic, wood, MDF, honeycomb table for soft materials like: paper, fabric, textile;
Control system: We use Ruida 6445 or Ruida 6442 control system, if you have other choice ,also can ask our sales manager;
Laser tube: There are RECI ,EFR , Yongli for you choose;
Taiwan Hiwin guide rail to guarantee the precision of cutting and engrave.
Specifications
| Working area | 1300mm x 900mm |
| Laser power | W2/W4/W6/W8 |
| Laser type | CO2 sealed laser tube, water-cooled |
| Cooling way | Water cooling CW3000/5000/5200 |
| Engraving speed | 0-60000mm/min |
| Cutting speed | 0-30000mm/min |
| Power supply | 220V/50Hz, 110V/60Hz |
| Laser energy control | 1-100% software Settings |
| Graphic format supported | BMP, PLT, DST, DXF, AI |
| Software supported | CorelDraw, Photoshop, AutoCAD, Tajima |
| Driving system | 3-phase stepper motor with decelerator |
| Air assist | Air pump |
| Dichroic Cutting | Yes |
| Optional part | Red light pointer |
Other Option of rotary device
Features of Chunk rotary axis rotating device

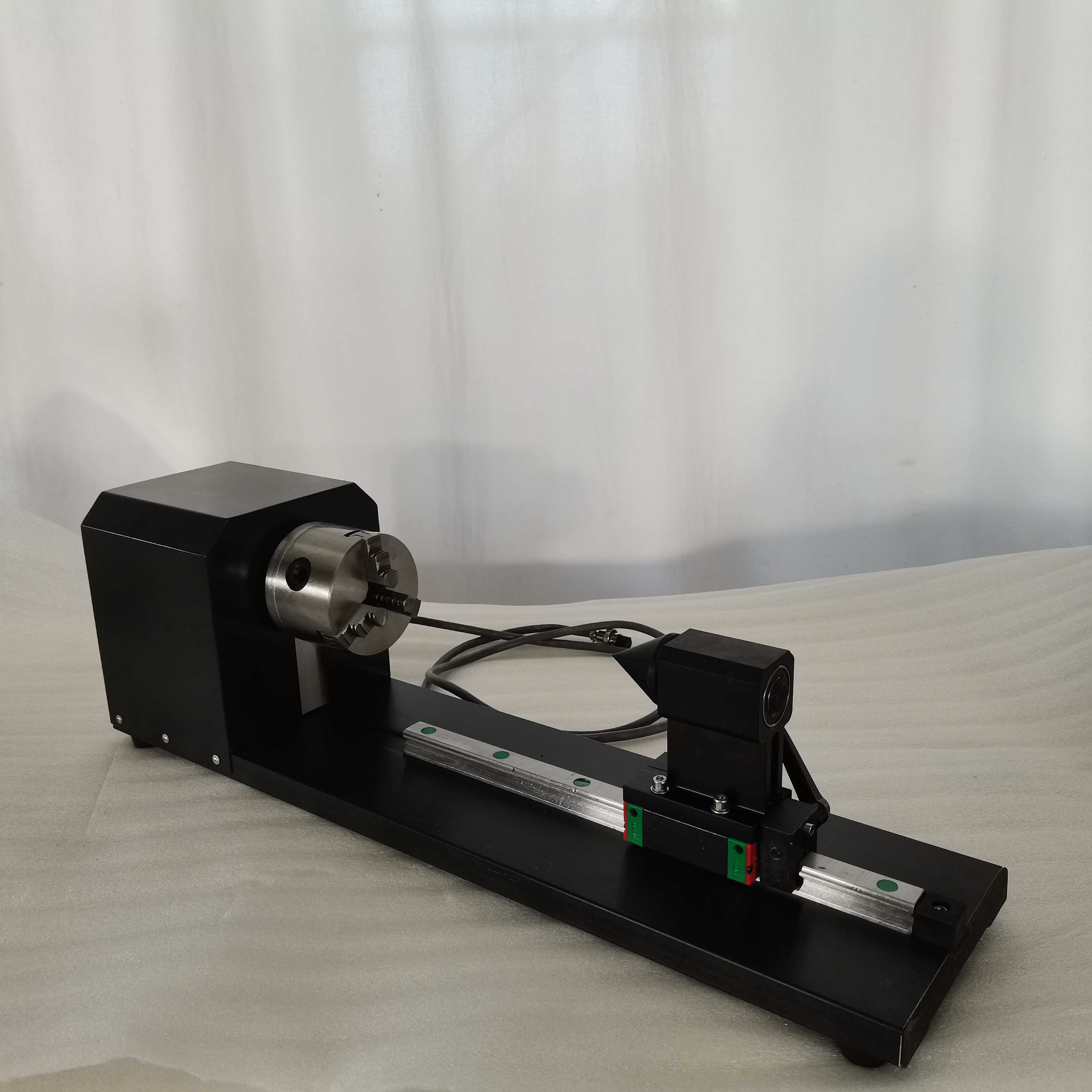

Rotary device with clip/ chuck
With step motor for round materials like wood and light glass cup etc engraving, it should equipped together with up and down worktable.
Rotary device with roller
With step motor for heavy and fragile round materials like glass cup, bottles, etc engraving, it should equipped together with up and down worktable.
Application
Applicable Materials:
Wood products, paper, plastic, rubber, acrylic, bamboo, marble, double-color sheets, glass, wine bottles and other non-metal materials.
Application Industries:
Advertising signs and boards, arts and crafts, awards and trophies, paper-cutting, architectural model , lights and lamps, printing and packaging, electronic appliances, photo frames and albums, garment leather and other industries.
