Portable Fiber Laser Marking Machine

Configuration:Portable

Working Accuracy:0.01mm

Cooling system:Air cooling

Marking area:110*110mm (200*200 mm,300*300 mm optional)

Laser source:Raycus, JPT , MAX, IPG , etc.

Laser Power:20W / 30W / 50W optional.

Marking format:Graphics, text, bar codes, two-dimension code, automatically marking the date, batch number, serial number,frequency,etc

Send email to us

Product Detail

Product Tags

Product Display

Technical parameter

Application	Laser Marking	Working Accuracy	0.01mm
Core Components	Motor, Laser Source	Marking Area	110110mm/175175mm/ 200200mm/ 300300mm
Mini Line Width	0.017mm	Weight (Kg)	65 Kg
Laser Source Brand	Jpt, Raycus, Ipg	Marking Depth	0.01-1.0mm(Subjejct To Material)
Graphic Format Supported	Ai, Plt, Dxf, Bmp, Dst, Dwg, Dxp	Applicable Industries	Hotels, Garment Shops, Building Material Shops
Wavelength	1064nm	After-Sales Service Provided	Video Technical Support, Online Support, Spare Parts
Mode Of Operation	Manual Or Automatic	Power Supply	Ac110-220V +10% / 50Hz
Marking Speed	≤7000mm/s	Cooling System	Air Cooling
Control System	Jcz	Software	Ezcad Software
Mode Of Operation	Pulsed	Key Selling Point	Competitive Price
Configuration	Portable Type	Positioning Method	Double Red Light Positioning
Video Outgoing Inspection	Provided	Graphic Format Supported	Ai, Plt, Dxf, Dwg, Dxp
Place Of Origin	Jinan,Shandong	Warranty Time	3 Years

Application

This model is compact in design, and the whole machine is about the same size as a computer case. The modular design makes it very easy to disassemble. The digital galvanometer has high anti-interference ability, high-speed marking without deformation, and the independent small worktable is easy to adjust the focal length. It is especially suitable for marking and engraving of jewelry, handicrafts and precision hardware.

Applicable fields:

Private laser customization, gift customization, night market gift customization, souvenir laser customization, mobile phone case customization, water cup engraving customization, mobile power laser engraving, DIY souvenirs, cola customization, cans customization, lighter engraving photos, business gift customization, wood engraving photos, laser Code customization, laser engraving technology

Features of small laser marking machine

Using a pulsed fiber laser, when the pulse width is less than 30ns, the output peak power is as high as 25kW, and it has a high beam quality M2<1.5 close to the diffraction limit.
The all-fiber structure design of the laser ensures the high reliability of the laser, while No optical components are required for collimation adjustment.
The integrated design of the system makes it more convenient for customers to use and provides ideal solutions for various industrial applications.
Long service life, small size, no need for a huge water cooling system, just simple air cooling. It can also work normally in harsh environments such as shock, vibration, high temperature or dust.
The processing speed is 2-3 times that of the traditional laser marking machine, the fine beam quality, the small spot and the narrow marking line width are suitable for fine marking.

Machine detail

Raycus Laser Source

3D scanning head

Field Lens

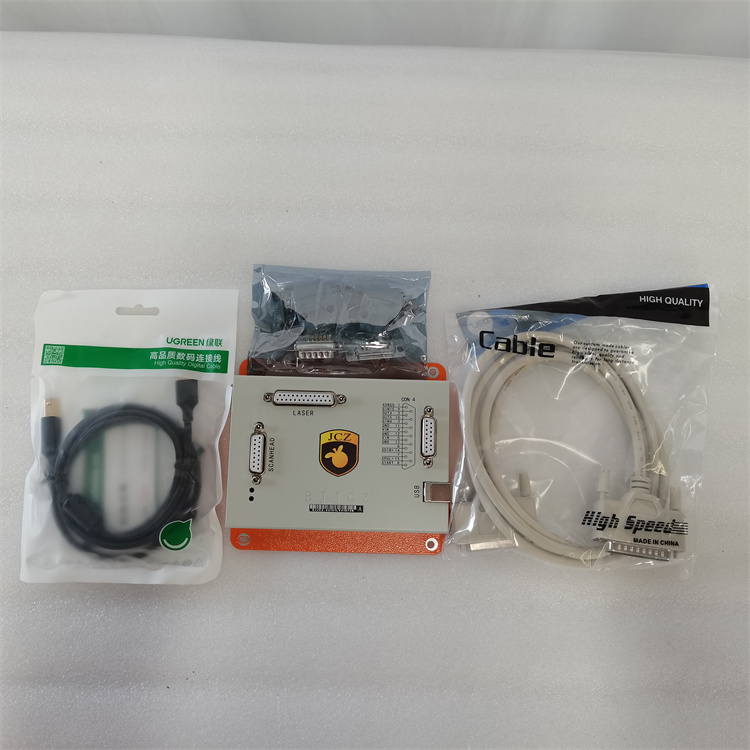

JCZ Board Card

Double red light

100mm rotary device

Laser Marking Head

24V Power Supply

Warranty

3 years warranty for this fiber laser marking machine
24-hour full after sales service: our skilled engineer will help customer to solve the problem by Whatsapp, Skype,wechat,email, etc in time when problems happen, if necessary, overseas service is available.
