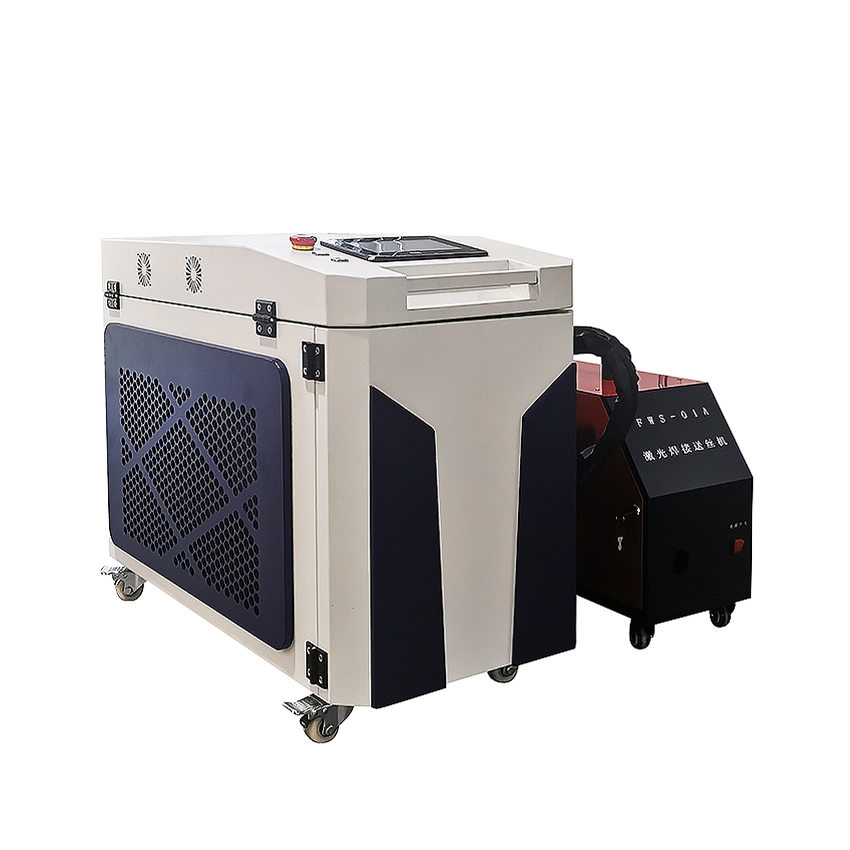

Mini Portable Laser Machine for cutting, welding and clean

Three in one machine:

1.It supports laser cleaning, laser welding and laser cutting. You only need to replace the focusing lens and nozzle, it can switch different working modes;

2.This machine with small chassis design, small footprint, convenient transportation;

3.The laser head and nozzle is varied and it can be used to achieve different working modes, welding, cleaning and cutting;

4.Easy operating system, supports language customization;

5.The design of the cleaning gun can effectively prevent dust and protect the lens. The most powerful feature is that it supports laser width 0-80mm;

6.The high power fibre laser allows for intelligent switching of the dual optical paths, evenly distributing energy according to time and light.

Send email to us

Product Detail

Product Tags

Product Display

Technical parameter

Condition	New	Core Components	Laser Source
Usage	Weld Metal	Max. Output Power	2000W
Applicable Material	Metal	Cnc Or Not	Yes
Cooling Mode	Water Cooling	Control Software	Ruida/Qilin
Pulse Width	50-30000Hz	Laser Power	1000w/ 1500w/ 2000w
Weight (Kg)	300 Kg	Certification	Ce, Iso9001
Core Components	Fiber Laser Source, Fiber, Handle Laser Welding Head	Key Selling Points	High-Accuracy
Function	Metal Part Laser Welding	Fiber Length	≥10m
Applicable Industries	Hotels, Garment Shops, Building Material Shops	Core Components	Laser Supply
Mode Of Operation	Pulsed	After Warranty Service	Online Support
Focal Spot Diameter	50μm	Wavelength	1080 ±3nm
Video Outgoing Inspection	Provided	Graphic Format Supported	Ai, Plt, Dxf, Dwg, Dxp
Place Of Origin	Jinan,Shandong Province	Warranty Time	3 Years

Main Parts for Machine

Main function of machine

The three-in-one laser welding and cleaning machine can cut, weld and clean metals without purchasing multiple laser equipment separately. It is suitable for welding stainless steel and aluminum alloys, and can also weld carbon steel, titanium alloys, etc., and can also be used for welding. Rust removal and hand-held metal cutting. For cleaning of metal rust, paint, oil and coatings, saving cost and space.

It can weld a variety of metal plates and pipes, mainly suitable for welding stainless steel, gold, silver, copper, galvanized sheet, aluminum sheet, various alloy sheets, rare metals and other materials.

Copper alloy surface patina cleaning, steel pipe surface oxide and pollutant cleaning, rail derusting.

Widely used in advertising signs, hardware products, auto parts, craft gifts and other industries, can be used for welding carbon steel, stainless steel, titanium, aluminum and other metal materials.

About usage of machine

1.Product Structure

2.Pipe connection

3.Fiber input installation

Maintenance of Laser head

Fiber laser lens :

Operating method and cautions: Tool: dust-free gloves or dust-free fingertips, dust-free cotton swab, isopropy alcohol and canned dry pure compressed air. Spray the isopropyl alcohol onto the dust-free cotton swab, make the lens face your eyes, gently pinch the side edge ofthe lens with the thumb and forefinger of your left hand, wipe the front and back ofthe lens in one direction from left to right or from top to bottom with dust-free cotton swab held in the right hand ( remember not to wipe the lens back and forth to avoid the second contamination), and blow the surface of the lens with dry pure compressed air to ensure there is no dust on the lens.

Disassembly of focusing lens:

Tool: 2mm inner hexagon wrench, clean cotton swab, alcohol and masking tape The assembly and disassembly of lens should be operated with hands wearing dust-free gloves or fingertips in clean environment.

Steps Step 1: loosen M4 screw with a 2mm inner hexagon wrench. Step 2: pull out ofthe focusing module horizontally Step 3: seal the port with masking tape to stop dust from entering the cavity to cause contamination. Step 4: the cover is gently pressed down and rotated 90°.Align the two convex places with the left and right openings. Take out the cover upward and the protective lens can be changed. (Note: install lens in concave and convex direction.)

Disassembly of protective lens

The assembly and disassembly of lens hould be operated with hands wearing dust-free gloves or fingertips in clean environment.

Steps: Change protective glass 01: Step 1: hold both sides of the green drawer handle module 1 in hand and pull out the protective lens horizontally. Take care ofthe dust, seal the port exposed on cavity with masking tape to stop the entry of dust into the cavity and replace the protective glass. Step 2: the cover is gently pressed down and rotated 90°. Loosen it when the two sides align with the two notches. Take out the cover and change the protective lens. Change protective glass 02: Step 1: take out the green drawer handle module 1 and pull out the protective lens horizontally. Take care of the dust, seal the port exposed on cavity with masking tape to stop the entry of dust into the cavity and replace the protective glass. Step 2: the cover is gently pressed down and rotated 90°. Loosen it when the two sides align with the two notches. Take out the cover and change the protective lens.
