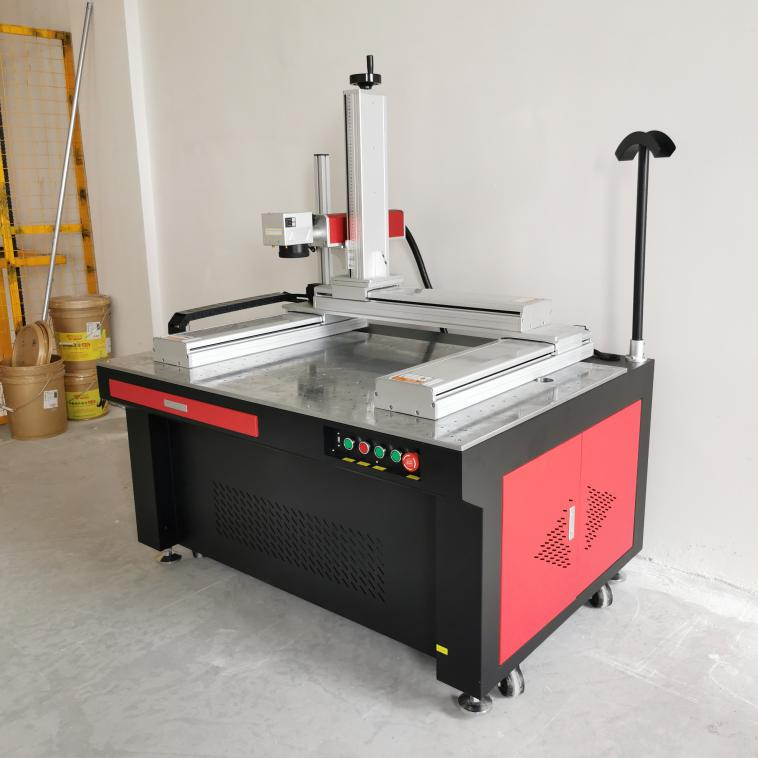

Large Format Fiber Laser Marking Machine
Product Display
Technical parameter
| Application | Fiber Laser Marking | Applicable Material | Metals and some non-metals |
| Laser Source Brand | RAYCUS/MAX/JPT | Marking Area | 1200*1000mm/1300*1300mm/other,can be customized |
| Graphic Format Supported | AI, PLT, DXF, BMP, Dst, Dwg, DXP,ETC | CNC or Not | Yes |
| Mini Line Width | 0.017mm | Min Character | 0.15mmx0.15mm |
| Laser Repetition Frequency | 20Khz-80Khz(Adjustable) | Marking Depth | 0.01-1.0mm(Subjejct To Material) |
| Wavelength | 1064nm | Mode Of Operation | Manual Or Automatic |
| Working Accuracy | 0.001mm | Marking Speed | ≤7000mm/s |
| Certification | CE, ISO9001 | Cooling system | Air cooling |
| Mode of Operation | Continuous | Feature | Low maintenance |
| Machinery Test Report | Provided | Video outgoing inspection | Provided |
| Place of Origin | Jinan,Shandong Province | Warranty time | 3 years |
Machine Video
Main Parts for Machine :
| Marking head | Tank Chain |
|
|
|
|
Motor |
Button |
|
|
|
The characteristic of Large Format Fiber Laser Marking Machine
1. Large marking range
Can meet the laser marking needs of large-size workpieces.
Adopt beam expansion focusing optical system or dynamic focusing technology (3D galvanometer) to ensure uniform marking effect in a large range.
2. High precision and high speed
Fiber laser has high beam quality (low M² value), which makes the marking lines delicate and suitable for precision processing.
Equipped with high-speed digital galvanometer scanning system, it can achieve high-speed engraving and improve production efficiency.
3. Applicable to a variety of materials
Applicable to stainless steel, aluminum alloy, copper, iron, titanium alloy and other metal materials.
It can be marked on plastics (ABS, PVC), ceramics, PCB and other materials to meet the needs of different industries.
4. Non-contact processing, permanent marking
The surface structure of the material is changed by laser energy, no consumables are required, and the marking is wear-resistant and difficult to erase.
It can be used for QR code, barcode, LOGO, pattern, serial number, deep engraving and other processing.
5. Strong scalability
It can integrate automated production lines, support peripherals such as rotating axes and XYZ mobile platforms, and realize automated marking of large quantities or special-shaped workpieces.
Service
1.Customized services:
We provide customized UV laser marking machine, custom designed and manufactured according to customer needs. Whether it is marking content, material type or processing speed, we can adjust and optimize it according to the customer's specific requirements.
2.Pre-sales consultation and technical support:
We have an experienced team of engineers who can provide customers with professional pre-sales advice and technical support. Whether it's equipment selection, application advice or technical guidance, we can provide fast and efficient help.
3.Quick response after sales
Provide fast after-sales technical support to solve various problems encountered by customers during use.
FAQ
Q: Does large-format laser marking affect accuracy?
A: No.
- Adopt "3D dynamic focusing technology" to ensure that the spot size is consistent throughout the large format.
- The accuracy can reach "±0.01mm", which is suitable for products with high detail requirements.
- "Digital galvanometer high-speed scanning" ensures clarity and stability.
Q: Can this equipment be used for assembly line operations?
A: Yes. Support:
- "PLC interface", linked with the assembly line to achieve automatic marking.
- "XYZ motion platform", adapted to the marking needs of irregular large workpieces.
- "QR code/visual positioning system" to improve production efficiency and accuracy.
Q: Can the depth of laser marking be adjusted?
A: Yes. By "adjusting laser power, scanning speed, and number of repetitions", marking of different depths can be achieved.
Q: Does the equipment require additional consumables?
A: "No consumables required". Laser marking is a "non-contact processing" that does not require ink, chemical reagents or cutting tools, "zero pollution, zero consumption", and low long-term use costs.
Q: How long is the laser life of the equipment?
A: The fiber laser life can reach "100,000 hours", and under normal use, "there is no need to replace the core components for many years", and the maintenance cost is extremely low.
Q: Is the equipment complicated to operate?
A: Simple operation:
- Using "EZCAD software", supporting "PLT, DXF, JPG, BMP" and other formats, compatible with AutoCAD, CorelDRAW and other design software.
- "Provide detailed operation manuals and training", novices can quickly get started.
Q: How long is the delivery cycle? How to transport?
A:
- Standard model: "ship within 7-10 days"
- Customized model: "Confirm delivery date according to demand"
- The equipment adopts "wooden box reinforced packaging", supports "global express, air and sea transportation", to ensure safe delivery.
Q: Do you provide sample testing?
A: Yes. We provide "free sample marking test", you can send materials, and we will provide effect feedback after testing.
Q: What is the price? Is customization supported?
A: The price depends on the following factors:
- Laser power
- Marking size
- Whether automation function is required (assembly line, visual positioning, etc.)
- Whether special functions are selected (rotating axis, dual galvanometer synchronous marking, etc.)
