5S UV Crystal Inner Engraving Laser Marking Machine

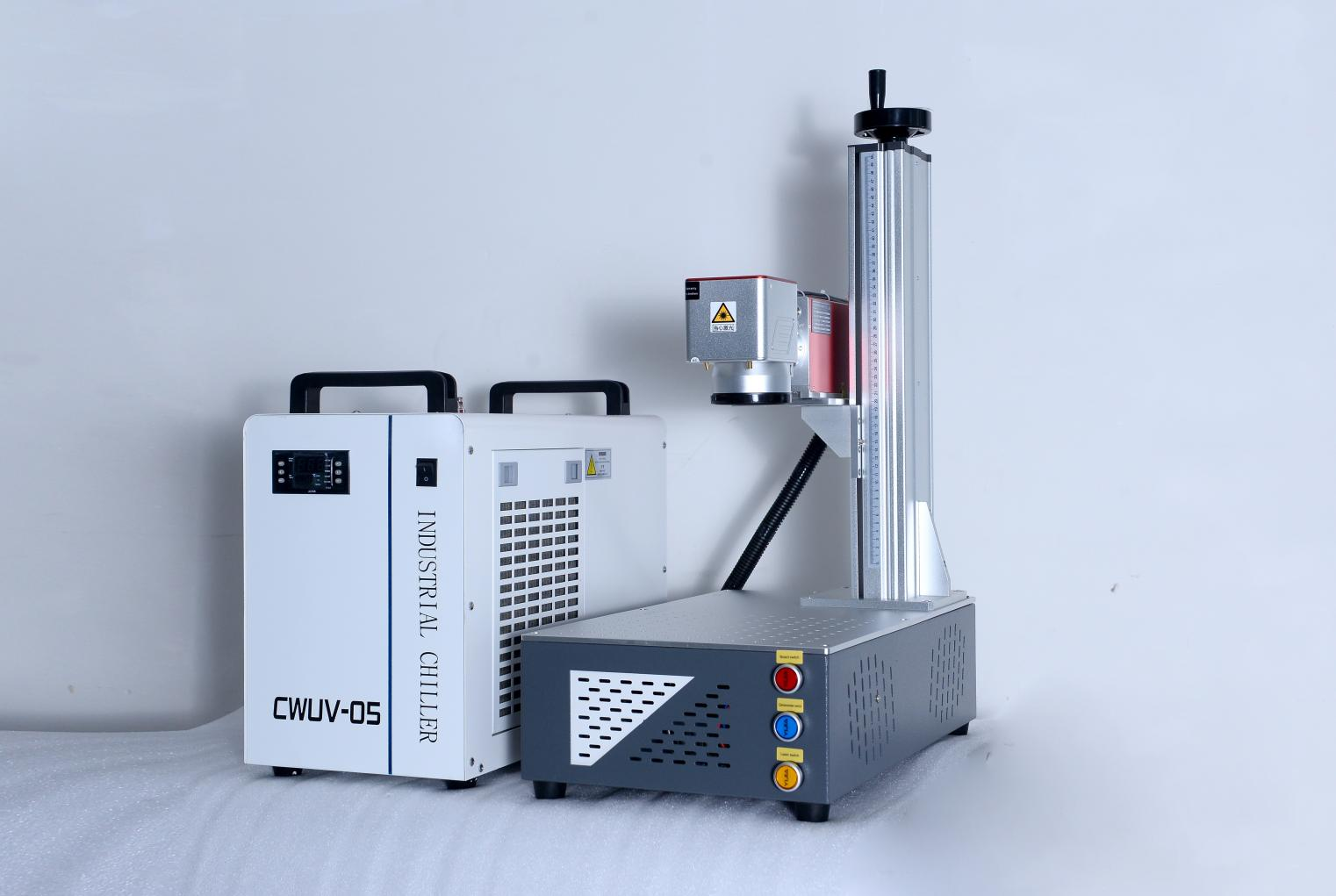

Product Display
Technical parameter
|
Laser parameters |
Laser brand |
Yingnuo 5W |
||
|
|
The central wavelength of the laser |
355nm |
||
|
|
Pulse repetition rate |
10k～150kHZ |
||
|
Vibrating mirror parameters |
Scan speed |
≤7000mm/s |
||
|
Optical output characteristics |
Focus lens |
F=110MM Optional |
F=150MM Optional |
F=200MM Optional |
|
|
Mark the range |
100MM×100MM |
150MM×150MM |
200MM×200MM |
|
|
Standard line width |
0.02MM（According to the material）Materials |
||
|
|
Minimum character height |
0.1MM |
||
|
Cooling system |
Cooling mode |
Water-cooled Deionized or purified water |
||
|
Other configuration |
Industrial Control Computer |
Enterprise-level industrial computer with display ,mouse keyboard |
||
|
|
Lifting mechanism |
Manual lifting ,stroke height 500mm |
||
|
Run environment |
Power to the system |
Voltage fluctuation range±5%.If the voltage fluctuation range exceeds 5%,a voltage regulator shall be provided |
||
|
|
Ground |
The ground wire of power grid meets the requirements of national standard |
||
|
|
Ambient temperature |
15～35℃，air conditioning should be installed when out of range |
||
|
|
Ambient humidity |
30%≤Rh≤80%，equipment outside the humidity range has the risk of condensation |
||
|
|
Oil |
No allowed |
||
|
|
Dew |
No allowed |
||
Machine Video
The characteristic of UV Crystal Inner Engraving Laser Marking Machine
1. High-definition fine engraving
1) Using high-precision ultraviolet laser or green laser technology, the spot is extremely small, the engraving resolution is high, and high-definition 3D images can be presented.
2) The engraving accuracy can reach the micron level, ensuring clear details and can show complex three-dimensional patterns and texts.
2. Non-contact non-destructive engraving
1) The laser directly acts on the inside of transparent materials such as crystal and glass, without touching the surface of the material, and will not cause scratches or damage.
2) After engraving, the surface is smooth and crack-free, maintaining the original texture and transparency.
3. High-speed engraving efficiency
Using a high-speed galvanometer scanning system, large-area or complex pattern engraving can be completed in a short time, improving production efficiency.
4. Wide applicability
It can achieve fine engraving on transparent crystal materials. It can be used for workpieces of various shapes, including square, round, teardrop, sphere, etc.
5. Green and environmentally friendly, no consumables required
1) Using optical engraving technology, no consumables such as ink and knives are required, no dust, no pollution, and meets environmental protection requirements.
2) Low operating cost, simple equipment maintenance, and more economical for long-term use.
Cutting samples
Service
1. Equipment customization: cutting length, power, chuck size, etc. can be customized according to customer needs.
2. Installation and debugging: provide on-site or remote guidance to ensure the normal operation of the equipment.
3. Technical training: operation training, software use, maintenance, etc., to ensure that customers are proficient in using the equipment.
4. Remote technical support: answer questions online and remotely assist in solving software or operation problems.
5. Spare parts supply: long-term supply of key accessories such as fiber lasers, cutting heads, chucks, etc.
6.Pre-sales consultation and technical support:
We have an experienced team of engineers who can provide customers with professional pre-sales advice and technical support. Whether it's equipment selection, application advice or technical guidance, we can provide fast and efficient help.
7.Quick response after sales
Provide fast after-sales technical support to solve various problems encountered by customers during use.
